Web Aligner System

Standard Features

We are a leading manufacturer, exporter and supplier of Web Aligner System from last 25 years with high quality and heavy duty equipment. High quality parts included in Web Aligner System, Web Guiding System for International Standard of Machines. Web Aligner, Web Guiding system for different types of Machines like Doctoring Rewinding Machine, Winding Rewinding and Slitter Rewinder Machine

.

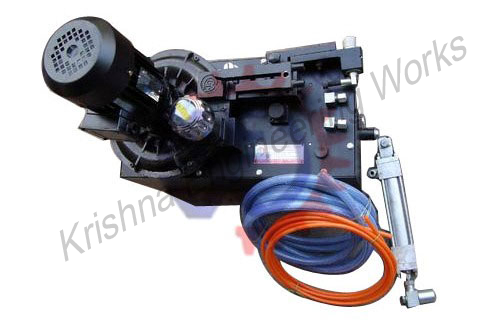

Web Aligner System (Power Pack) Unit Complete With:

0.5 H.P. Motor

Air Pipe – 5 Mtr.

Oil Pipe – 5 Mtr.

Sensor – 1 pcs

Adjuster – 1 pcs.

Air Filter – 1 pcs.

Oil Filter – 1 pcs.

Hydraulic Cylinder size 4”, 6” & 8”strock – 1 pcs.

SENSORS:

In the specially designed non-contact Air flow sensors, air is expelled from two opposing orifices. The differential air pressure is use to detect lateral wandering of the material in process. The Airflow sensors are self cleaning & fitted with fine adjustment mounting bracket.

HYDRAULIC CYLINDER:

It works on hydraulic pressure. It actuates the correcting frames. Available in different size from 2″ to 18″ stroke length.

Technical Specification

TYPE	KEW–17	KEW–30
Motor rating (3 phase, 50 Hz)	0.5 HP	1HP
Pump flow rate	3.4 l/min	5.8 l/min
Tank capacity	17 liters	30 liters
Oil type	Servo 32, Enklo 44, Hydro 37
Line pressure	14 bar	21 bar
Max. Operation force (50.8 mm dia. Cylinder)	260kg	389.5 kg
Follow-up speed
Max. At 3.4 l/min	30mm/sec	—
At 5.8 l/min	—	40mm/sec
Air sensor air pressure	5 to 28 mbar, infinitely adj.
Weight including oil	40kg	60kg

Double Power Pack
Dual Web Aligner

We are skilled in offering the Double Power Pack renowned for providing high capacity, control options & configurations to be utilized in almost any application. The Double Power Pack is designed and manufactured using premium quality hydraulic components selected from a wide range and assembled using high technology systems which are designed with technologically advanced concept.

Electro-Hydro Web Aligner Unit
Benefits of Electro-Hydro Web Aligner Unit:

No maintenance
Labor saving
Electricity saving
No wastage
More production

STRUCTURE OF THE WEB ALIGNER

M. S. Tank and M. S. Plate

SYSTEM OF THE OPERATION IN RUNNING OF ELECTRO-HYDRO WEB ALIGNER

Electronic of the film Photocell sensor for edge.
Electronic 0 – 5 HP AC Motor.
Electrical Panel Board for Operate the complete Unit.
Hydraulic Cylinder – Adjuster – Oil Pipe.

TECHNICAL DATA

Speed of Unit 250/min
Variation of the film Winding is 0.5

Web Aligner System suitable for all types of Machines like:

Rotogravure Printing Machine
Lamination Machine / Coating Machine
Slitter Rewinder Machine
Doctoring Rewinding Machine
Paper Machinery
Textile Machine like Batching Machine, Inspection Rewinding Machine, etc
Tyre-Cord Machinery
