Corrugated Box Machinery

Technical Specification of Corrugated Box Machinery

Corrugated Box Machinery

A) 4 Bar RotaryCreasing & Cutting Machine:

TECHNICAL DATA
Size	Sheet Feed Min. / Max.	Motor H.P.	Floor Space	Approx. Wt. In kg.
65″	15″ / 60″	1.0	8′ X 5′	2000
75″	15″ / 70″	1.5	9′ X 5′	3000
85″	15″ / 80″	1.5	10′ X 5′	3300

SPECIFICATIONS:

• This machine is used for cutting and creasing on the corrugated sheets simultaneously.
• The machine has four cutting and four creasing dies.
• Both the cutting & creasing dies are made in two half for easy to adjust or move from the shaft.
• The machine is sturdy and contains graded alloy steel knives for long life sharpness & smooth cutting.
• Its function is creasing & cutting the corrugated sheet as per required measurement.

• Gauges are provided for accurate cutting and creasing of sheets.

TECHNICAL DATA:

Machine	Motor	Floor Space	Machine Height	Gross Weight	Production Capacity
Size	(H.P)
65″	1.5	55″ x 85″	48″	2,200	5,000
75″	2	55″ x100″	48″	2,600	5,000
85″	2	55″ x110″	48″	2,800	5,000
95″	2	55″ x 120″	48″	3,000	5,000
105″	2	55″ x130″	48″	3,200	5,000

B) Board Cutter

TECHNICAL DATA

Size	Floor Space	Approx. Wt. In kg.
45″	5’ X 6’	450
55″	6’ X 6’	500
65″	7’ X 6’	550

C) Eccentric Slotter

TECHNICAL DATA

Size	Slot Depth Max.	Min Distance Between 2 Slots	Motor H.P.	Floor Space	Approx. Wt. In kg.
65″	12″	4″	1.5	8’ X 4’	2000
75″	12″	5″	2.0	9’ X 4’	3000
85″	12″	5″	2.0	10’ X 4’	3300

SPECIFICATIONS:

• The machine punches out the slots and stitch edges of corrugated sheet.
• The slots units are mounted over an eccentric roller causing them to move accurately, as required.
• The machine has three slotting and one corner cutting heads, capable to punch out a number of boards at a time.
• Guides are provided on the feed table, to support the sheet at accurate angle & dimension.
• The rack arrangement is there to set the paper adjustment of knives easily.
• Knives are operating like scissor for precision and smooth cutting.

TECHNICAL DATA

Machine	Minimum	Maximum	Motor	Floor Space	Machine	Gross	Production
Size	Space	Slot depth	(H.P)		Height	Weight	Capacity
Between Slots
65″	5″	12″	2	55″x 90″	58″	2,200	30
75″	6″	18″	3	58″x 100″	62″	2,800	30
85″	6″	18″	3	58″x 110″	62″	3,000	30
95″	6″	18″	3	58″x 120″	62″	3,200	30
105″	6″	18″	3	58″x 130″	62″	3,400	30

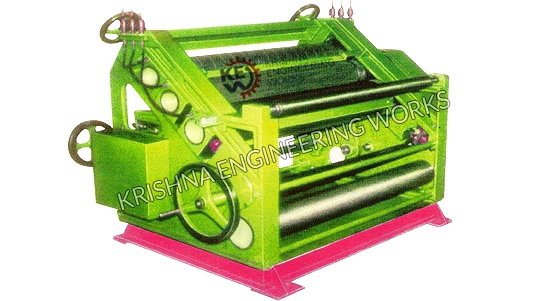

D) Oblique Single Face Paper Corrugated Machine

TECHNICAL DATA

Size	Motor H.P. M/c./ R/s.	Heater Load	Max. Speed RFT / Min.	Floor Space	Approx. Wt. In kg.
42”	5.0 / 1.5	21 KW	100	16’ X 7’	3250
52”	7.5 / 1.5	21 KW	100	16’ X 8’	3750
62”	7.5 / 1.5	21 KW	100	16’ X 9’	4250

SPECIFICATIONS:

• This is heavy duty an exclusively high precision and robust type machine is design for high production speed.
• The flute rolls are mounted on heavy duty bearings for high smooth running and longer life.
• The flute rolls are minutely finished to give perfect impression on the board.
• The gum rollers are hard chrome for better performance and life.
• The machine design to run on Electric / Steam Heating.
• Two pre-heaters are provided to demoisturise the paper.
• The flute rolls are made of special alloy steel for better performance and life.
• The machine has motorized self loading twin shaft reel stand with three unwinding shafts helps in easy operation saving time.

TECHNICAL DATA

Machine	Motor	Boiler	Steam	Floor	Machine	Gross	Production
Size	Required	Kcal/Hr	Pressure	Space	Height	Weight	Capacity
(H.P)	(Kg/cu	(Kgs)	(RF/PM)
	Mtr)
42″	10	1 Lac	12-Oct	96″ x 180″	72″	4,000	150
52″	10	1 Lac	12-Oct	105″ x 180″	72″	4.2	150
62″	10	1 Lac	12-Oct	115″ x 195″	72″	4,600	150
72″	15	1.5 Lac	14-Dec	125″ x 200″	72″	4,800	150
82″	15	2.0 Lac	14-Dec	135″ x 210″	72″	5	150

E) Rotary Sheet Cutter

TECHNICAL DATA

Size	Motor H.P.	Cutting Length Min. / Max.	Max. Output Sheet / Min.	Floor Space	Approx. Wt. In kg.
52”	2	20” / 80”	80	6’ X 8’	1900
62”	2	20” / 80”	80	7’ X 8’	2100

SPECIFICATIONS:

• This machine is designed for high production and straight cutting of sheet or two ply corrugated board without damaging flutes & liner paper.
• This Machine can be used as an independent unit or can be synchronized to a Corrugation machine for direct and accurate sheet cutting which minimizes the percentage of wastage.
• PIV Gear box is provided for adjusting of sheet to the required length.
• A delivery conveyor is provided to carry the sheets out.
• Variable speed motor is recommended for economy in wastage at an Additional cost.

TECHNICAL DATA

Machine Size	Motor Required	(Cutting Length)	Floor Space	Machine Height	Gross Weight	Production Capacity
(H.P) manual reel stand	(mini / max)	(Kgs)	(min/max)
45″	3	20″/80″	82″x120″	48″	1600	20″ / 60″
52″	3	20″/80″	90″x120″	48″	1800	20″ / 60″
56″	3	20″/80″	95″x120″	48″	1900	20″ / 60″
62″	3	20″/80″	100 x120″	48″	2000	20″ / 60″
72″	3	20″/80″	110 x130″	48″	2200	20″ / 60″

F)Sheet Pasting Machine:

TECHNICAL DATA

Size	Motor H.P.	Floor Space	Approx. Wt. In kg.
65”	0.5	8’ / 3’	700
75”	0.5	9’ / 3’	750
85”	0.5	10’ / 3’	800

SPECIFICATIONS:

• This machine is used for applying glue on the tip of the corrugated surface of board and specially designed for pasting corrugated sheets of different ply and thickness.
• All rolls are grinded, balanced hard chromed are called glue pickup roll, pressure roll & doctor roll.
• Gum tray is provided to store the gum.
• Side setting is provided to set gum in this machine.
• Setting of gum can be done in microns as desired.
• It saves the time and gum and the final product dries fast because of the minimum application of the gum.
• All rollers are fitted with ball bearing for smooth running and longer life.
• The machine is simply designed, strong in construction and is easy to operate.
• It assures faultless working during continuous operation.

TECHNICAL DATA:

Machine	Motor	Floor Space	Machine	Gross Weight	Production Capacity
Size	(H.P)		Height
65″	0.5	30″ x 85″	45″	500	5000
75″	0.5	30″ x 96″	45″	600	5000
85″	0.5	30″ x 105″	45″	700	5000
95″	0.5	30″ x 105″	45″	800	5000
105″	0.5	30″ x 125″	45″	900	5000

G)Sheet Pasting Machine:

TECHNICAL DATA

Size	Motor H.P.	Floor Space	Approx. Wt. In kg.
45” X 65”	1.5	4.0’ X 5.5’	900
65” X 75”	2.0	5.5’ X 6.5’	1000
65” X 90”	2.0	5.5’ X 7.5’	1200

H)Stitching Machine:

SPECIFICATIONS: This Machine is meant to stitch the corrugated boxes. The machine is driven by coil spring clutch. The machine is fitted with thickness setter to adjust the gap depending on the board thickness. The parts are standardized, and are inter changeable and made of alloy steel. The machine can continuously run at a high speed. This machine is exclusively designed for accuracy and quality stitching. This machine is available in Straight / Angular / Bottom models. TECHNICAL DATA

Machine	Motor	Floor	Machine	Gross Weight approx (Kgs.)	Production
Size	required	Space	Height		Capacity(Stitches Per Minutes)
(H.P)
20″	0.5	20″ x 38″	60″	250	350
30″	0.5	20″ x 48″	60″	250	350
36″	0.5	20″ x 55″	60′	275	350
42″	0.5	20″ x 62″	60″	300	350
48″	0.5	20″ x 68″	60″	300	350
